Nuts
Nuts
TGP has a comprehensive range of nuts using hot forging, cold forging, bar turning & milling process. We are manufacturing Hex Nuts, Square Nuts, Hex Lock Nuts, Pal Nuts, Heavy Hex Nuts, Long Nuts.

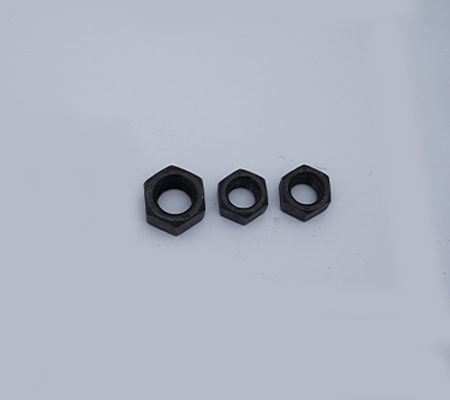

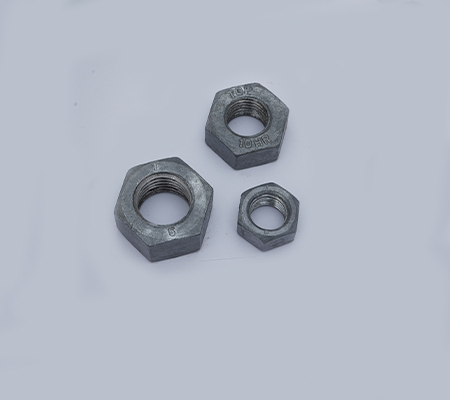

Hex Nuts
We are producing Hex Nuts, Heavy Hex Nut, Long Nuts, Lock Nuts, Flange Nuts and Nylock Nuts .
| Sizes: | M5 to M120 |
| Grades: | 4, 5, 6, 8, 10, 12 etc. |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, Cadmium, dichromate, Rilson etc. |
| Standards: | As per all IS, ISO, DIN, ANSI, BS, ASTM, JIS Standards. |

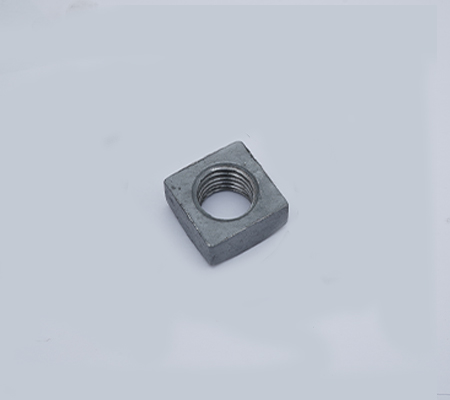

Square Nuts
We are manufacturing Sq Nuts for general and industrial use.
| Sizes: | M16 to M56 |
| Grades: | 4, 5, 6, 8, 10 etc. |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, Cadmium, dichromate, Rilson etc. |
| Standards: | DIN 557 & Customer Drawing. |

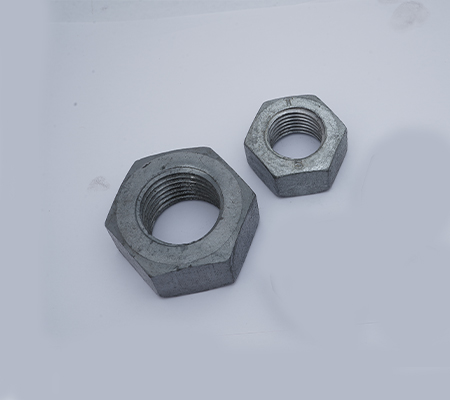

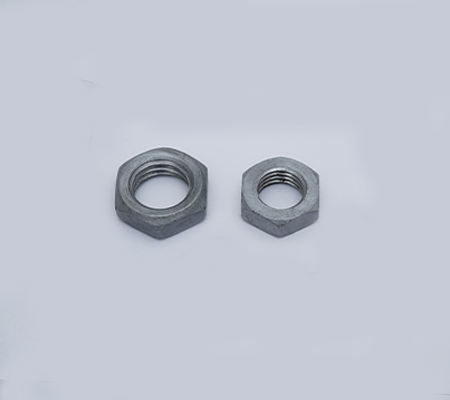

Hex Lock Nuts
Lock Nuts are used for locking purpose. A thin lock nut that is assembled with a regular nut to lock both nuts in place. The lock nut provides extra resistance that helps prevent loosening.
| Sizes: | M8 to M100 |
| Grades: | 4, 5, 6, 8, 10 etc. |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, Cadmium, dichromate, Rilson etc. |
| Standards: | IS, ISO, DIN Standards. |

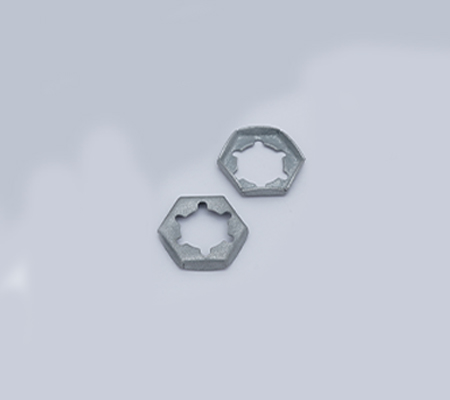

Pal Nuts
A Pal nut is a locking device for nuts which is made of spring sheet metal, The pal nut is screwed on the bolt on top of an ordinary nut, and has a series of protruding barbs that locks the nut in place when the nut is tightened. The Pal nut itself is reusable. A Pal nut should not be used as a substitute for a positive locking device such as a castellated nut or nuts with safety wire.
| Sizes: | M12 to M24 |
| Grades: | 4, 5, 6, 8, 10 etc. |
| Finish: | HDG |
| Standards: | IS, ISO, DIN Standards. |

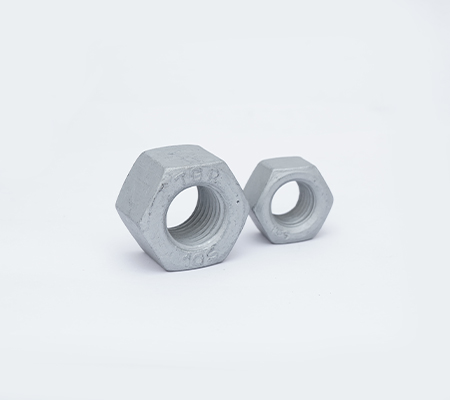

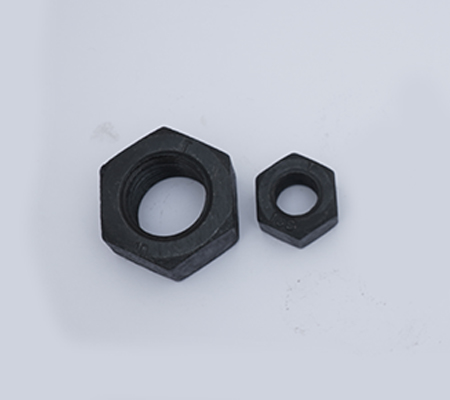

Heavy Hex Nuts
Heavy Hex Nuts are internally threaded fastener which is both thicker and wider than a same-sized finished hex nut. These are mainly used in structural plant, bridges etc. We are offering Hv hex nuts in Metric and inches (imperial).
| Sizes: | M16 to M72 (5/8" to 3") |
| Grades: | 8, 10, 2H, 2HM, 4 & 7 etc. |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, dichromate, Rilson etc. |
| Standards: | ASTM, ANSI, DIN , BS |

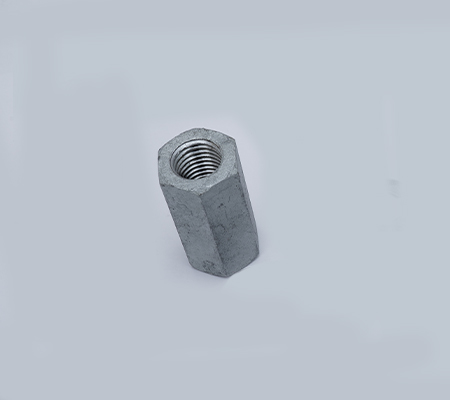

Long Nuts
Coupler Nut also known as extension nut is a threaded fastener for joining two male threads, most commonly a threaded rod but also pipes. The outside of fastener is the hex usually so a wrench can hold it.
| Sizes: | M10 to M30 |
| Grades: | 5,6, 8,10 etc. |
| Finishes: | Black, HDG, Zinc Plated etc |
| Standards: | DIN 6334 |
